Spent motor stator recycling line JZ-DZ2000

Brand Name: Weibo Technology

Model No. JZ-DZ2000

E-mail : jzfsj@126.com

Prev：No Previous Product
Next：Waste rotor recycling line JZ-ZZ1500

Product Details

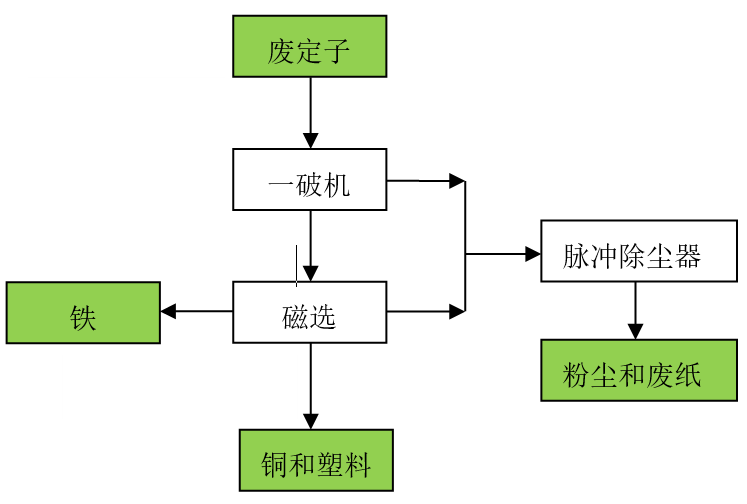

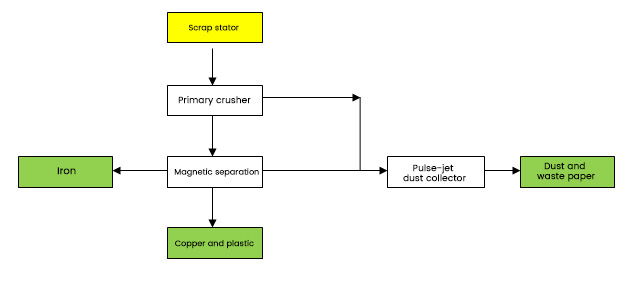

I. Process flow chart

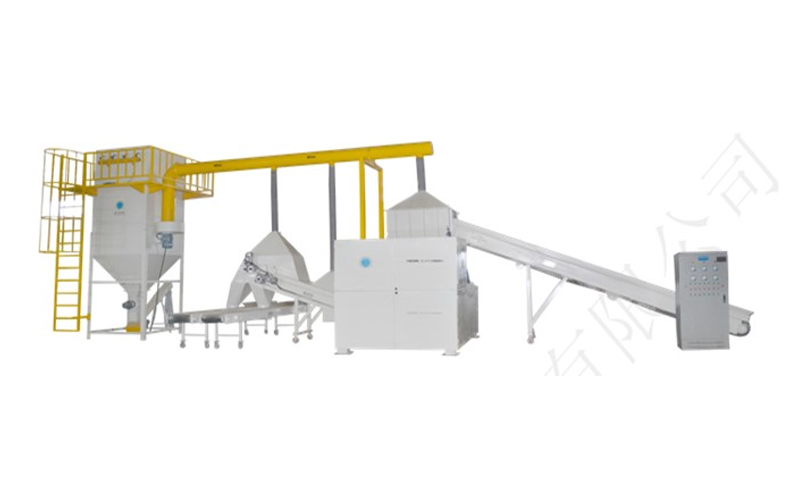

II. Equipment Introduction

The production line uses a tear crusher to crush the material with the help of a hydraulic propulsion system. The crusher has a built-in screen. When the material is crushed to a rough size, it passes through the screen and is sent by a conveyor to a strong magnetic roller magnetic separation to sort out the iron. The two materials obtained are sent out by parallel conveyors respectively.

III. Main parameters

Device Name	JZ-DZ2000 waste stator recycling production line
Equipment Model	JZ-DZ2000
Equipment for handling materials	Spent motor stator and transformer, material diameter≤15cm
Processing volume	1000 ~1500KG/H
Equipment size	15700×4800×5000
Equipment performance and features	1. Compact structure, reasonable layout, stable performance and low noise. 2. PLC is used to control the uniform feeding and coordinated operation of the full production line. 3. The first crushing machine adopts the tearing crushing principle, which makes the crushed materials more impactful. It consists of a micro knife and a cylindrical knife rod to form a crushing mechanism. The knife greatly reduces the input cost of fragile parts. 4. The magnetic separation equipment adopts a strong magnetic double drum type sorting machine, so that the sorting rate is as high as more than 98%. 5. The dust removal rate of the pulse dust removal system reaches 99%, effectively suppressing dust overflow, fully meeting the country's environmental protection requirements, and without secondary pollution.
